Module Assembly Replacement

  1. Remove the rear door trim.
  2. Remove the glass.
  3. Remove the inside handle.
  4. Remove the outside handle.
  5. After loosen the door module mounting bolts, remove the door module (A).

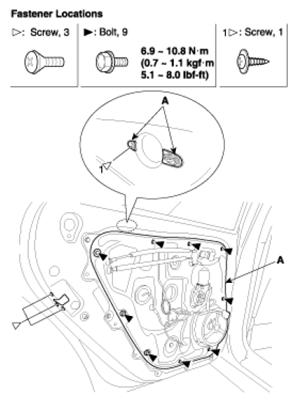

    Fig 1: Identifying Door Module With Mounting Bolts And Screws
    G06802111Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the connector (C).
  7. Detach the clips, then remove the wiring harness (A).
  8. Remove the module (B).
    Fig 2: Identifying Wiring Harness, Module With Connector
    G06802112Courtesy of HYUNDAI MOTOR CO.
  9. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly and each cable is connected securely.
    • Make sure the door lock and open properly.
