Schematic Diagram

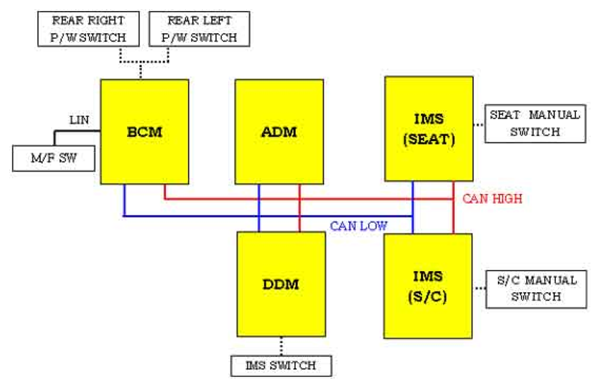

Fig 1: Communication Diagram - Power Seat Module
G06805662Courtesy of HYUNDAI MOTOR CO.

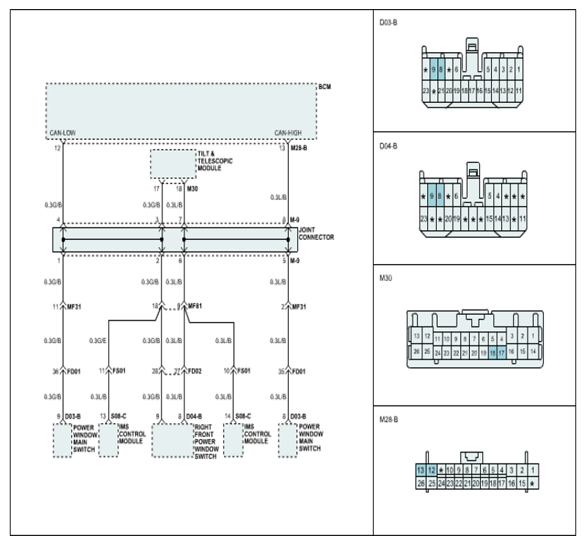

Fig 2: Schematic Diagram - Power Seat Module
G06805663Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Power Window Main Switch Connectors
G06805664Courtesy of HYUNDAI MOTOR CO.
