Components and Components Location: Components

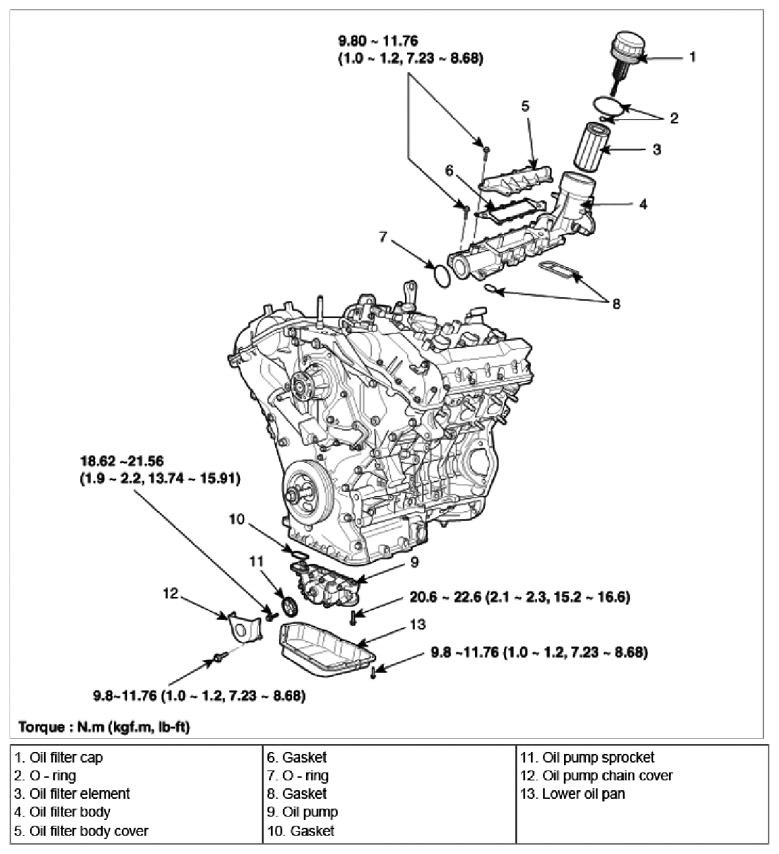

Fig 1: Identifying Lubrication System Components
G06804863Courtesy of HYUNDAI MOTOR CO.
