CVVT Oil Temperature Sensor (OTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

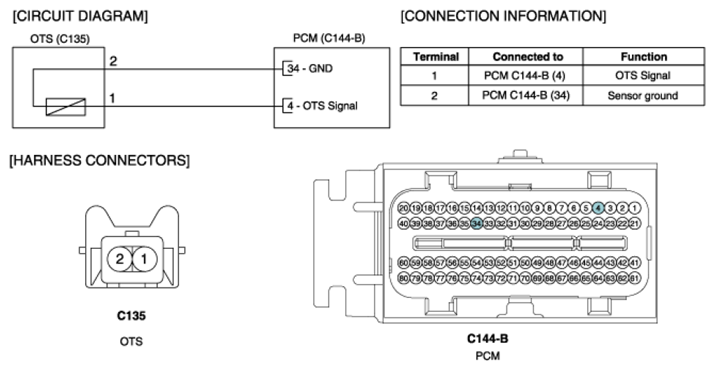

Fig 1: CVVT Oil Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
