Home › Hyundai › 2010 › Azera GLS › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Crankshaft Position Sensor (CKPS) › Troubleshooting › Waveform

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

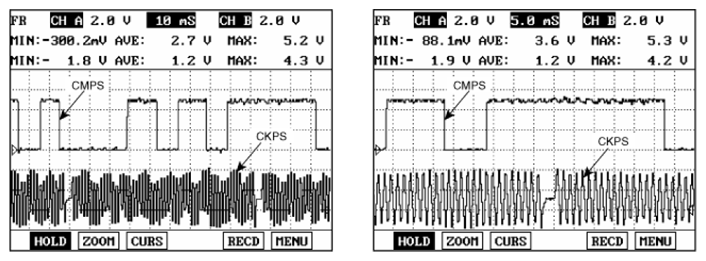

Fig 1: Crankshaft Position Sensor Waveform Graph
G06805065Courtesy of HYUNDAI MOTOR CO.
