Circuit Diagram

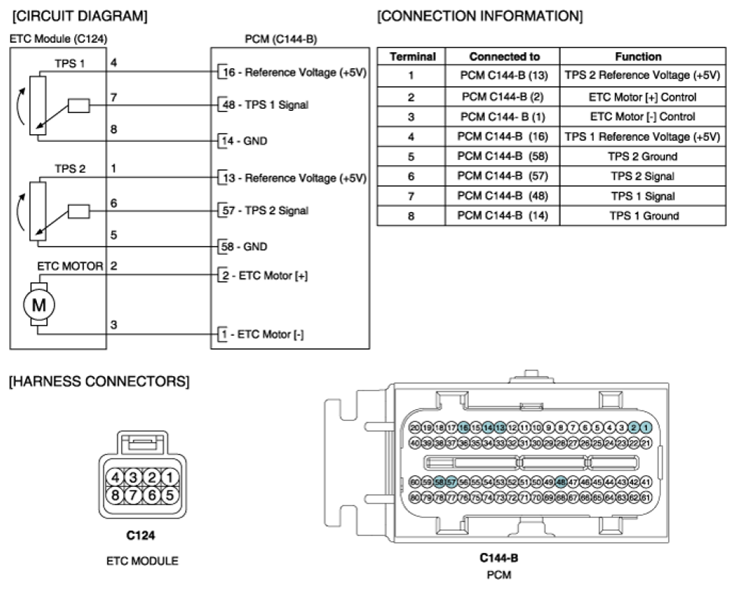

Fig 1: Electronic Throttle System Circuit Diagram
G06805082Courtesy of HYUNDAI MOTOR CO.
