Home › Hyundai › 2010 › Azera GLS › Repair and Diagnosis › Restraints › Passive Restraints › Seat Belt System › Front Seat Belt › Components and Components Location › Components

Components and Components Location: Components

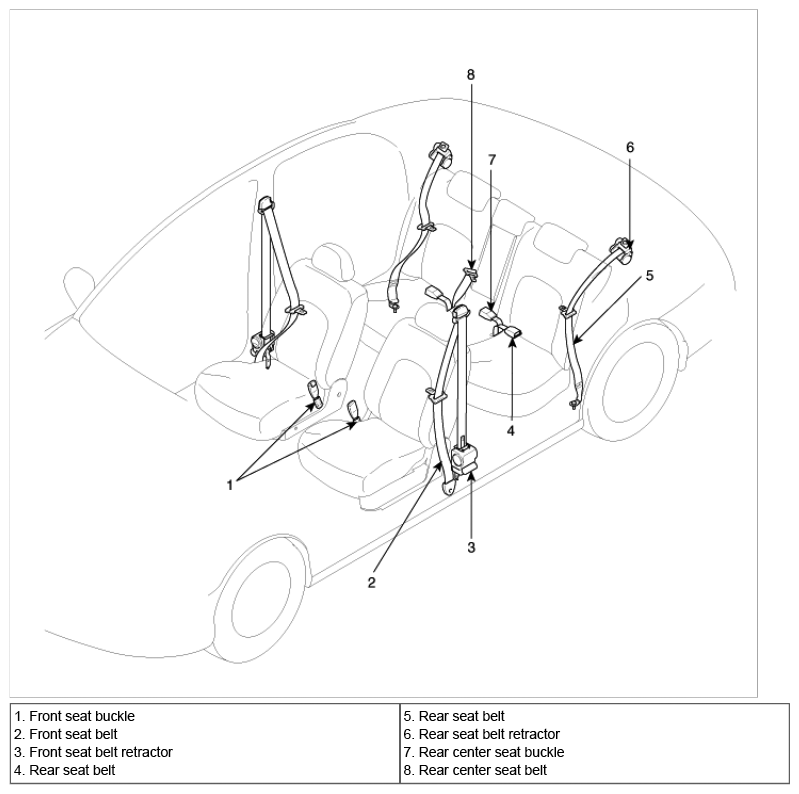

Fig 1: Identifying Front Seat Belt Components
G06805410Courtesy of HYUNDAI MOTOR CO.
