Components (2)

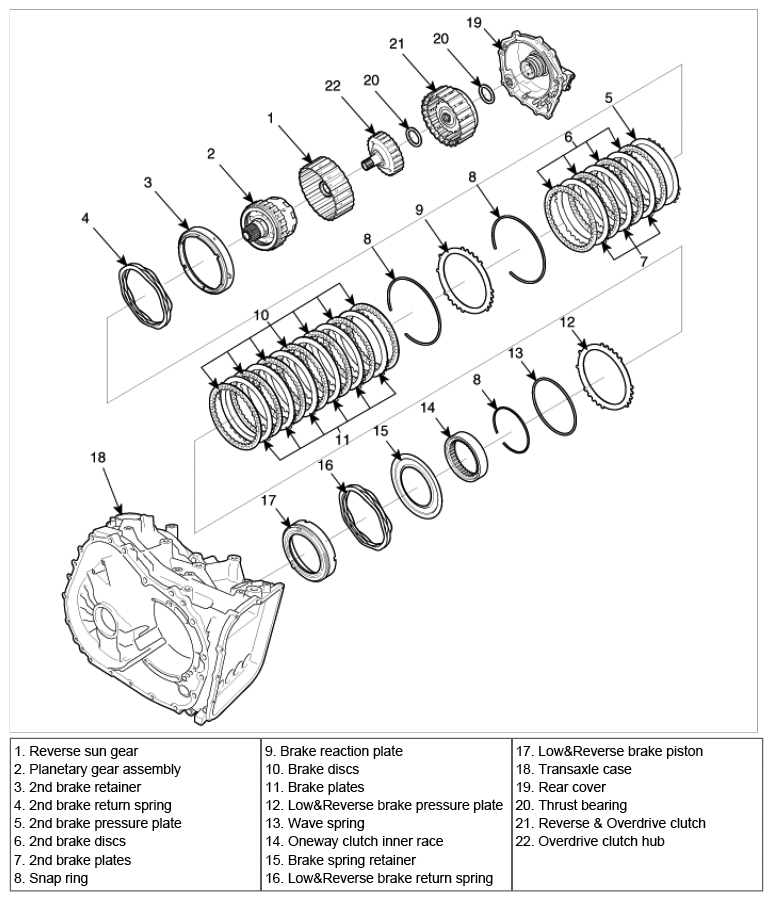

Fig 1: Identifying Automatic Transaxle Components Location (2 Of 2)
G06805122Courtesy of HYUNDAI MOTOR CO.
