Component Inspection

■ Check tilt switch

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "TILT UP (DOWN) SWITCH" Parameter on the Scantool. While operating tilt switch.

   Specification:  Refer the specifications in Fig.1), Fig.2)

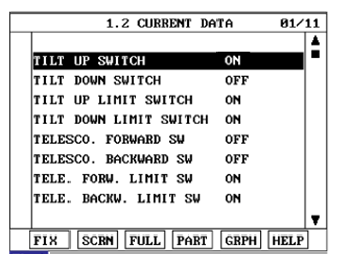

   Fig 1: Monitoring Tilt (UP) Switch Parameter On Scantool

   Courtesy of HYUNDAI MOTOR CO.

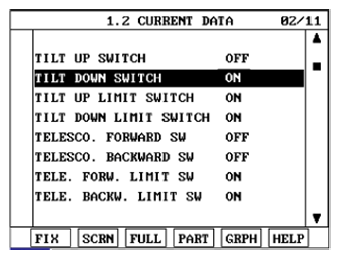

   Fig 2: Monitoring Tilt (Down) Switch Parameter On Scantool

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured current data within specifications?

   YES

   • Go to  1Check tilt motor procedure.

   NO

   • Substitute with a known-good tilt switch and check for proper operation. If the problem is corrected, replace tilt switch and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check tilt motor

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Select "ACTUATION TEST" mode on scantool and press [F1] to start

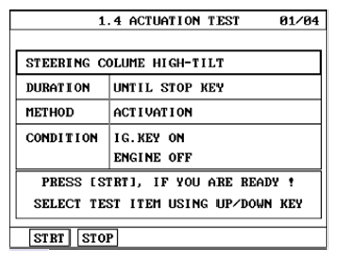

   Fig 3: Scantool Display - Select Actuation Test Mode (1 Of 2)

   Courtesy of HYUNDAI MOTOR CO.

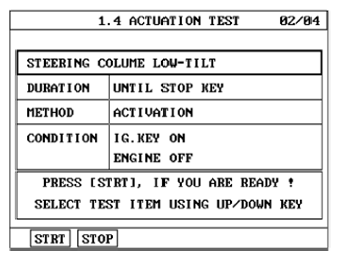

   Fig 4: Scantool Display - Select Actuation Test Mode (2 Of 2)

   Courtesy of HYUNDAI MOTOR CO.
4. Dose tilt motor work properly?

   YES

   • Go to  1 Check tilt sensor procedure.

   NO

   • Substitute with a known-good tilt motor and check for proper operation. If the problem is corrected, replace tilt motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check tilt sensor

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "TILT SENSOR" Parameter on the Scantool. While operating tilt switch.

   Specification:  Refer the specifications in Fig.5)

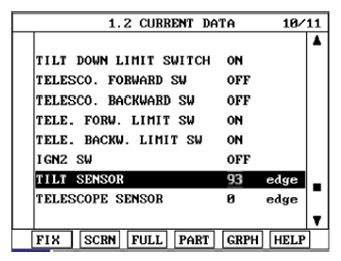

   Fig 5: Monitoring Tilt Sensor Parameter On Scantool

   Courtesy of HYUNDAI MOTOR CO.

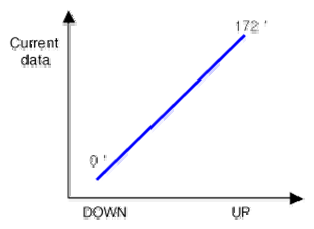

   Fig 6: Current Data Of Tilt Sensor

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specifications in Fig5)?

   YES

   • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good tilt motor and check for proper operation. If the problem is corrected, replace tilt motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
