Home › Hyundai › 2010 › Azera Limited › Repair and Diagnosis › Electrical › Gauges › Interior › Console › Components and Components Location › Components

Components and Components Location: Components

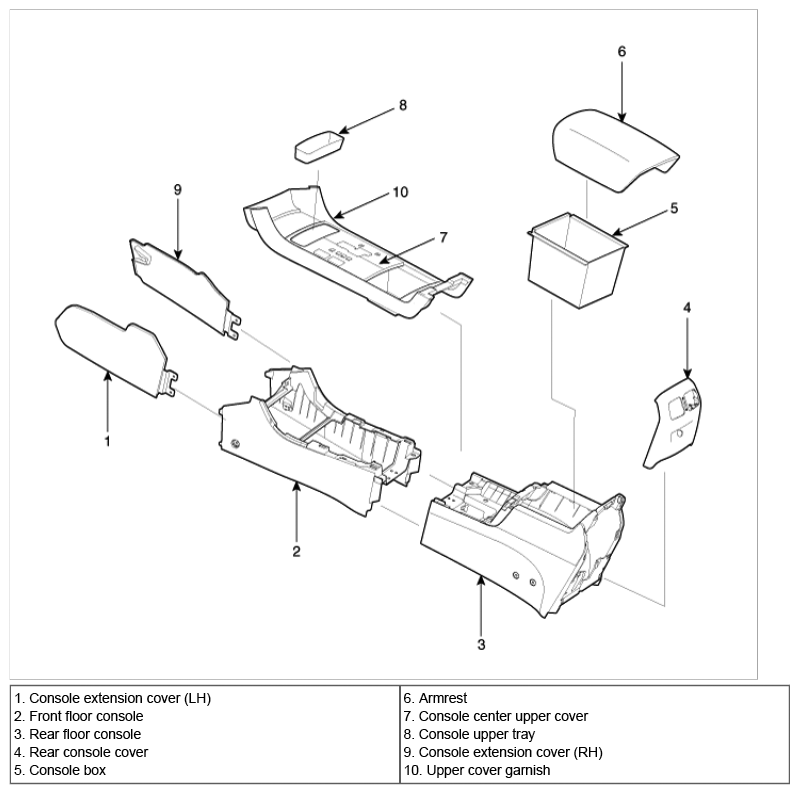

Fig 1: Identifying Console Components
G06802150Courtesy of HYUNDAI MOTOR CO.
