Components and Components Location: Components

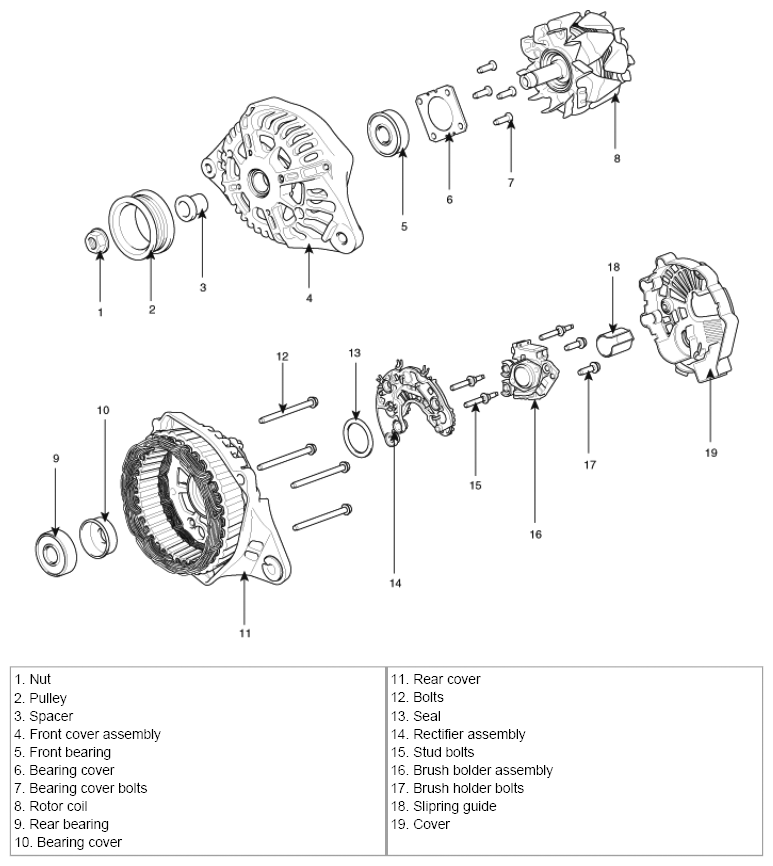

Fig 1: Identifying Alternator Components
G06863076Courtesy of HYUNDAI MOTOR CO.
