Repair procedures: Replacement

  1. Remove the trim.
    NOTE:
    • Put on gloves to protect your hands.
    • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
    • Take care not to bend or scratch the trim and panels.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

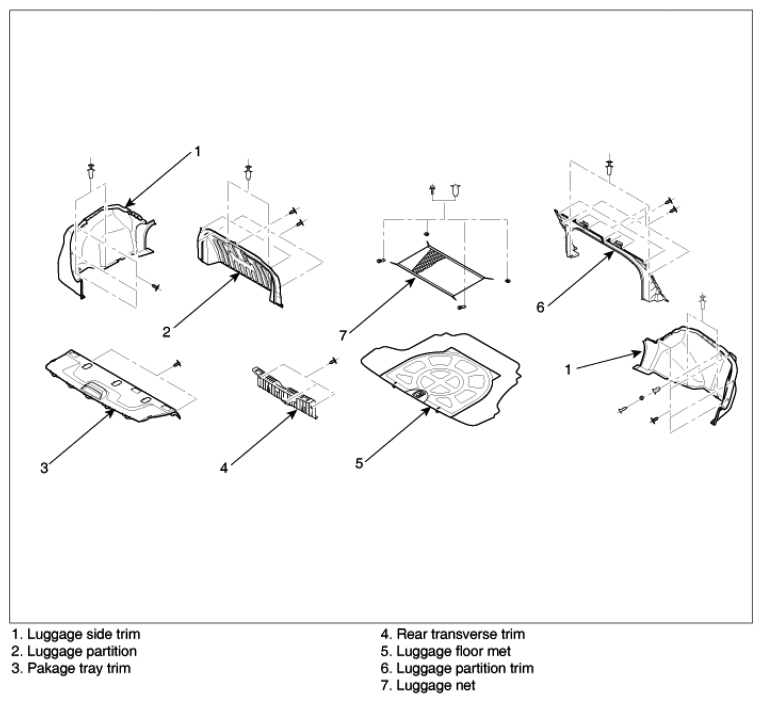

      Fig 1: Identifying Trunk Lid Trim Components
      G06864166Courtesy of HYUNDAI MOTOR CO.
