Power Window Switch
›
Components and Components Location
›
Components
›
Assist Power Window Switch
Assist Power Window Switch

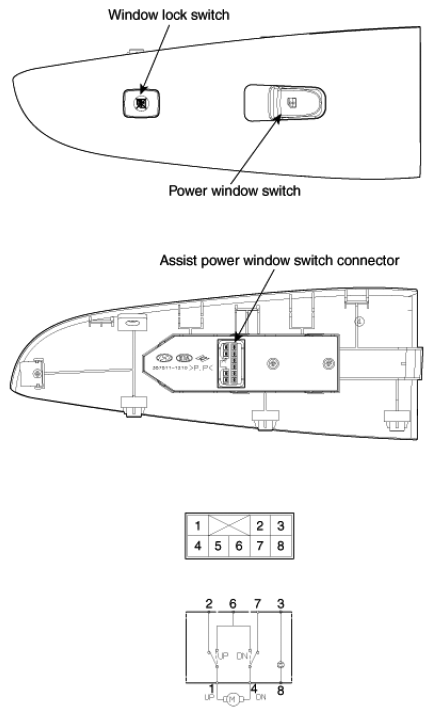

Fig 1: Identifying Power Window Main Switch Components And Circuit - Assist Power Window Switch
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
