Components and Components Location
›
Components
›
Power Window Main Switch
Power Window Main Switch

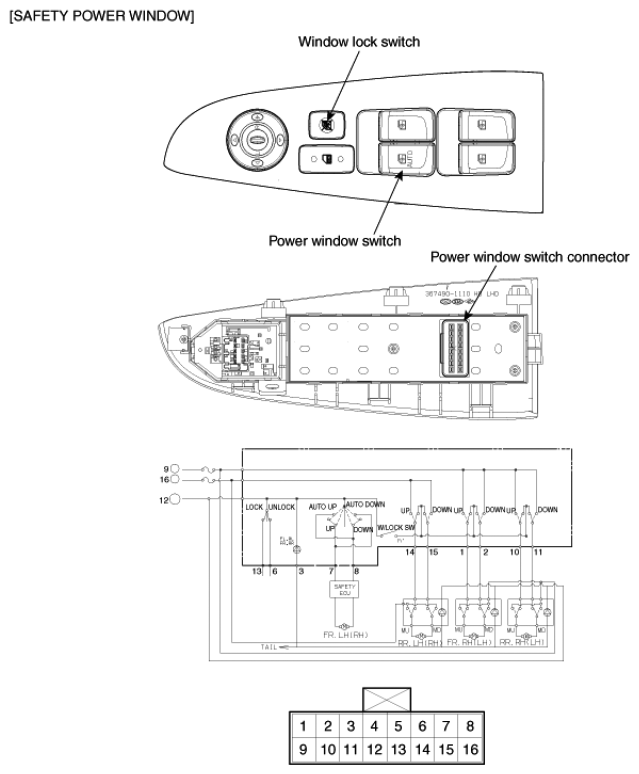

Fig 1: Identifying Power Window Main Switch Components And Circuit - Safety Power Window
Courtesy of HYUNDAI MOTOR CO.

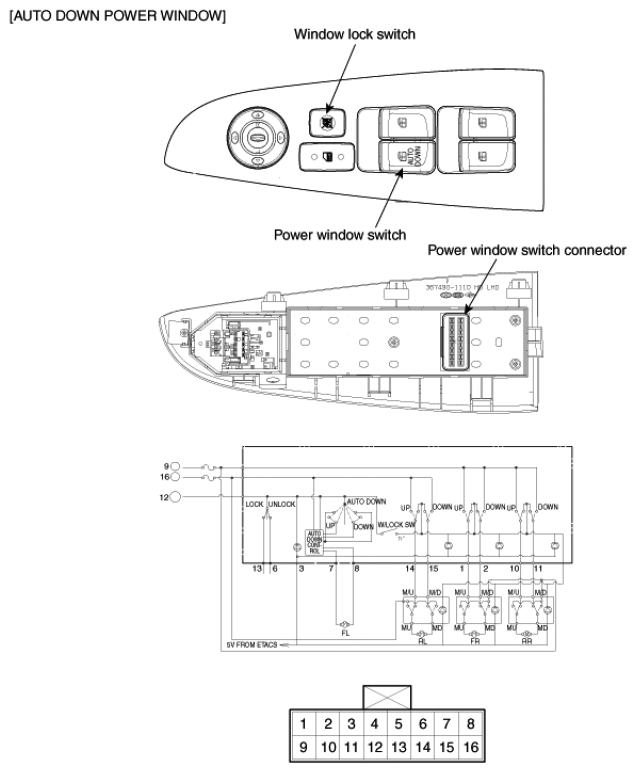

Fig 2: Identifying Power Window Main Switch Components And Circuit - Auto Down Power Window
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
