Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

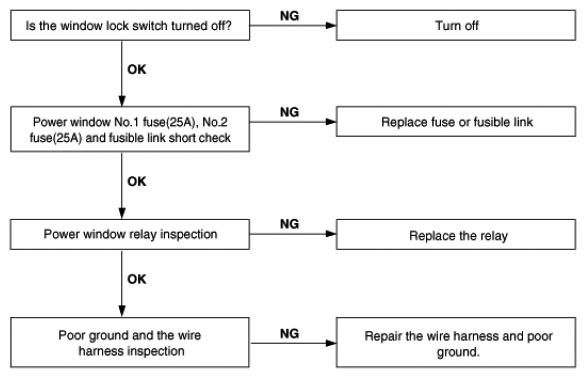

    Fig 1: Troubleshooting Chart - No Windows Operate From Main Switch On Driver's Door
    G06864472Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

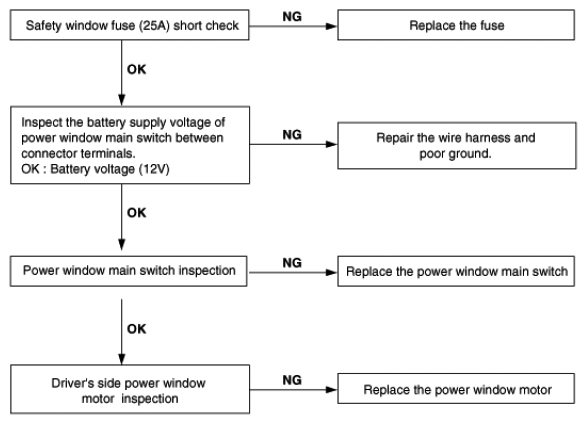

    Fig 2: Troubleshooting Chart - Driver Side Window Does Not Operate
    G06864473Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

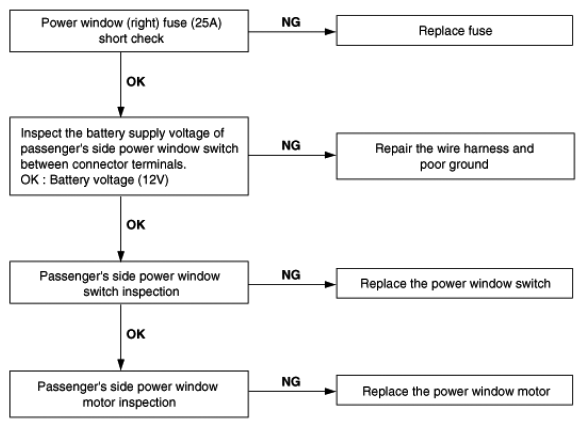

    Fig 3: Troubleshooting Chart - Passenger Side Window Does Not Operate
    G06864474Courtesy of HYUNDAI MOTOR CO.
