Components and Components Location: Components

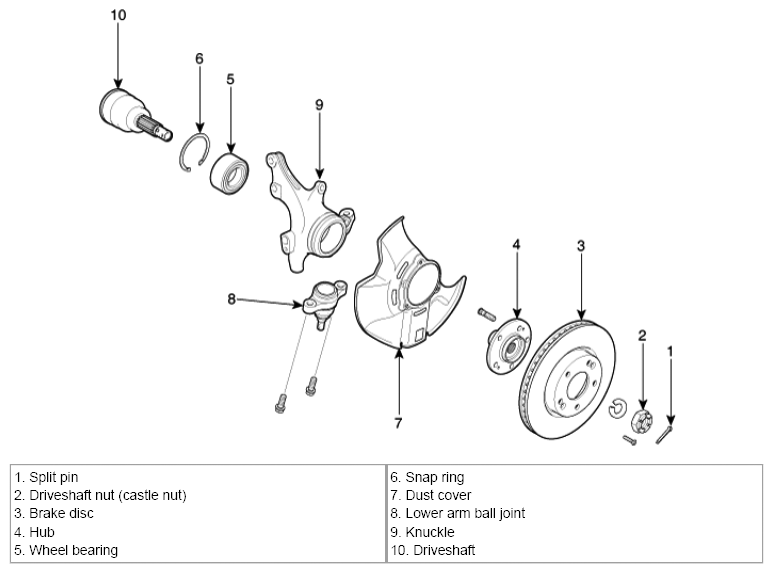

Fig 1: Identifying Front Hub - Axle Components
G06863442Courtesy of HYUNDAI MOTOR CO.
