Schematic Diagram

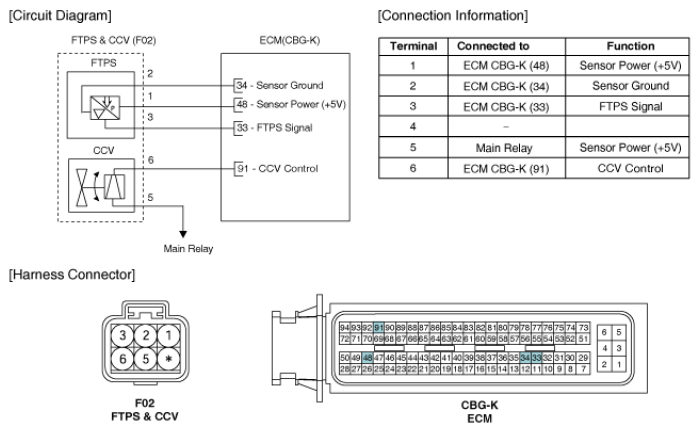

Fig 1: Canister Close Valve Circuit Diagram
G06863188Courtesy of HYUNDAI MOTOR CO.
