Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

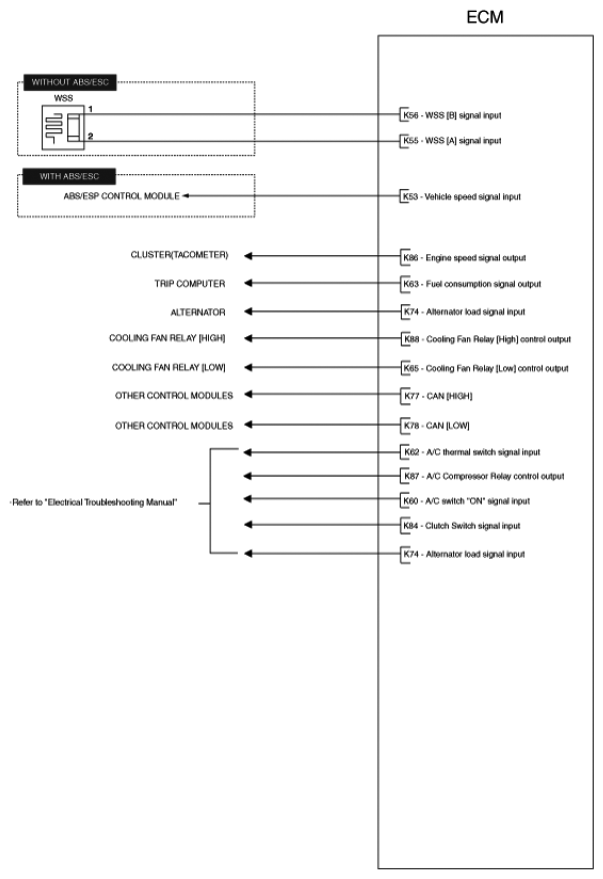

Fig 1: ECM Circuit Diagram (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

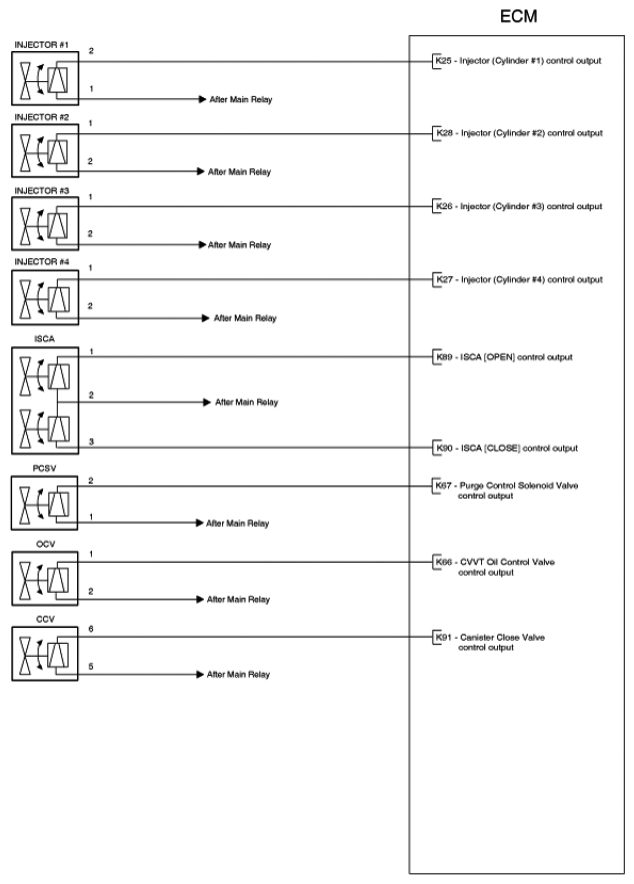

Fig 2: ECM Circuit Diagram (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

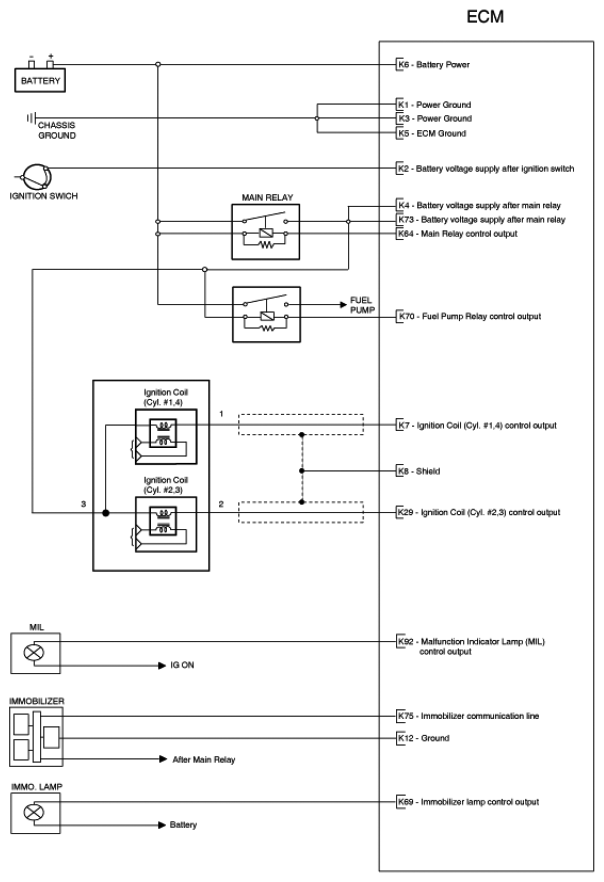

Fig 3: ECM Circuit Diagram (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

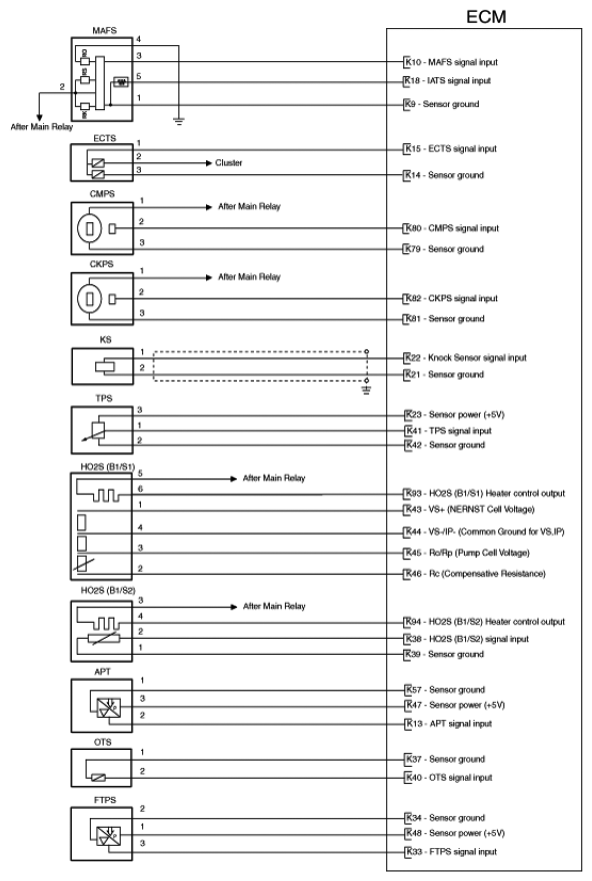

Fig 4: ECM Circuit Diagram (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
