Fuel Tank Pressure Sensor (FTPS)
›
Schematic Diagram
Schematic Diagram

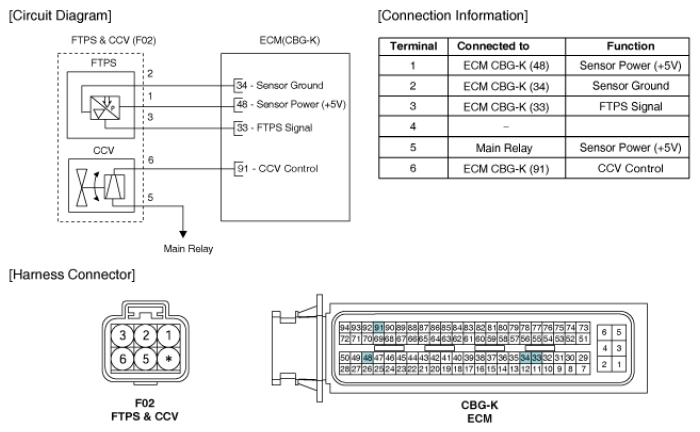

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
