Idle Speed Control Actuator (ISCA)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

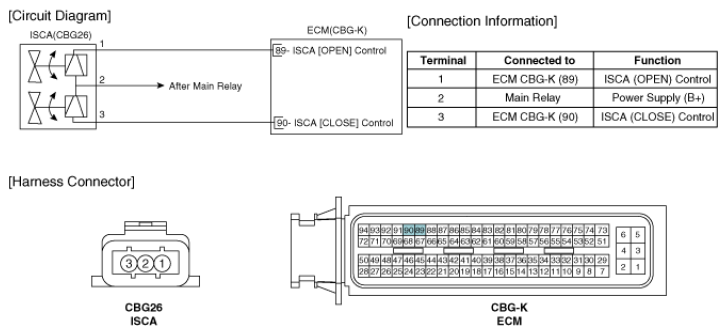

Fig 1: Idle Speed Control Actuator Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
