Knock Sensor (KS): Troubleshooting: Waveform

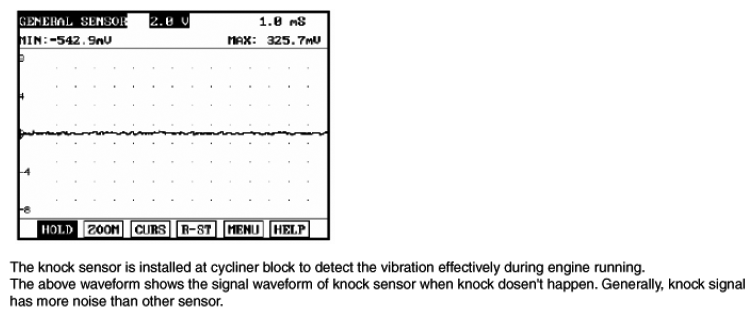

Fig 1: Knock Sensor Signal Waveform
G06863172Courtesy of HYUNDAI MOTOR CO.
