Circuit Diagram

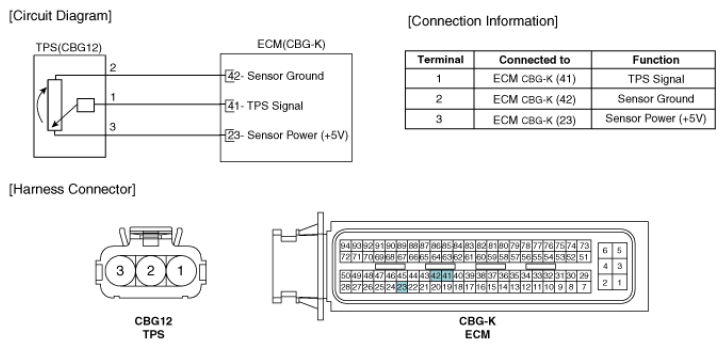

Fig 1: Throttle Position Sensor Circuit Diagram
G06863158Courtesy of HYUNDAI MOTOR CO.
