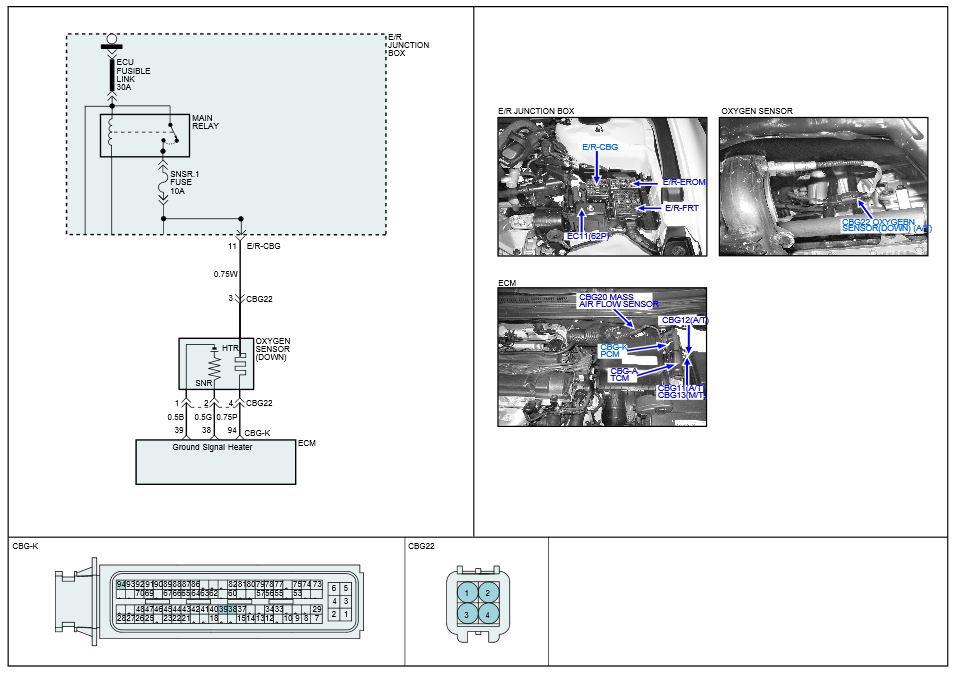

Home › Hyundai › 2010 › Elantra GLS › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 2) › DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 2) › General Information › Schematic Diagram
