Inspection
›
Resistance Inspection
Resistance Inspection

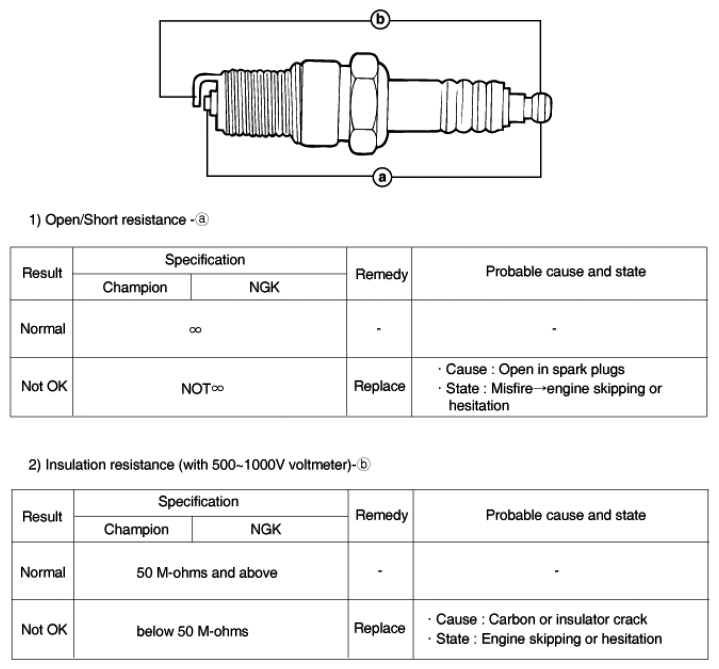

Fig 1: Measuring Resistance Between Spark Plug Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
