Toe Adjustment

Loosen the nut holding the assist arm cam bolt (A).

Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolt by the same amount.

Toe-in:

Total : 0.22°±0.2°

Individual : 0.11°±0.1°

TOE ADJUSTMENT CHART

Cam bolt	Turning direction	Toe
LH (Driver's side)	Clockwise	Decrease (Toe in)
LH (Driver's side)	Counter clockwise	Increase (Toe out)
RH	Clockwise	Increase (Toe out)
RH	Counter clockwise	Decrease (Toe in)

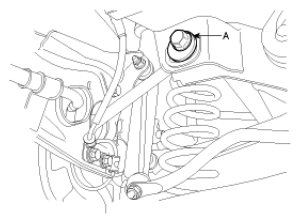

Fig 1: Identifying Rear Assist Arm Cam Bolt

Courtesy of HYUNDAI MOTOR CO.

When completing the toe adjustment, tighten the nut to specified torque.
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0 kgf.m, 72 ~ 87 lb-ft)
