Rear Defogger Timer

  1. Defogger relay is turned for T1 if defogger SW is turned ON under ALT "L" ON.
  2. Defogger relay is turned OFF if defogger SW is turned ON again under output ON or ALT "L" OFF.

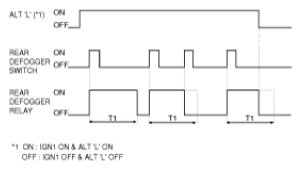

    Fig 1: Identifying Rear Defogger Timer - Signals
    G06864350Courtesy of HYUNDAI MOTOR CO.

    T1 : 20MIN ± 1MIN
