Manual Transaxle: Components

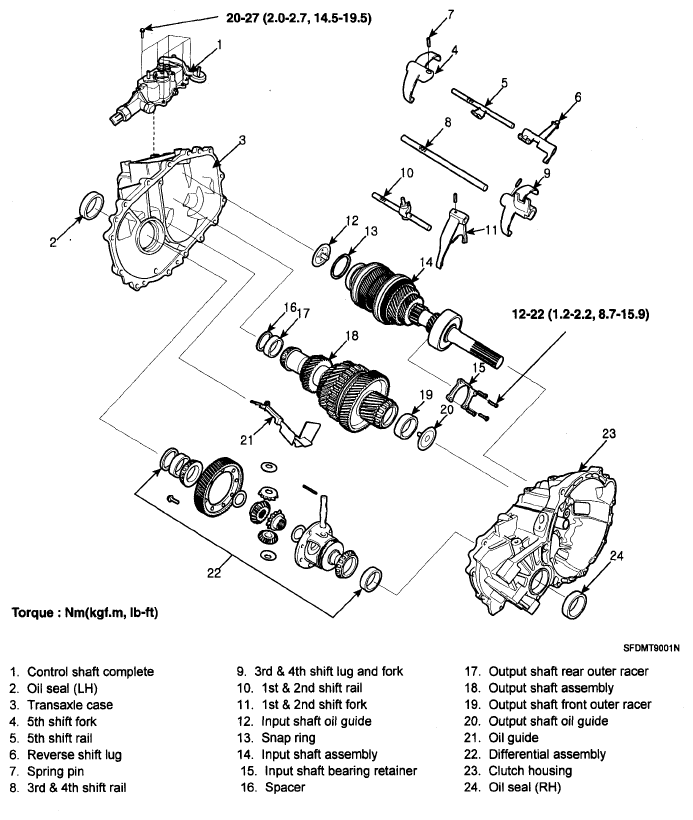

Fig 1: Manual Transaxle Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
