Components and Component Locations: Components

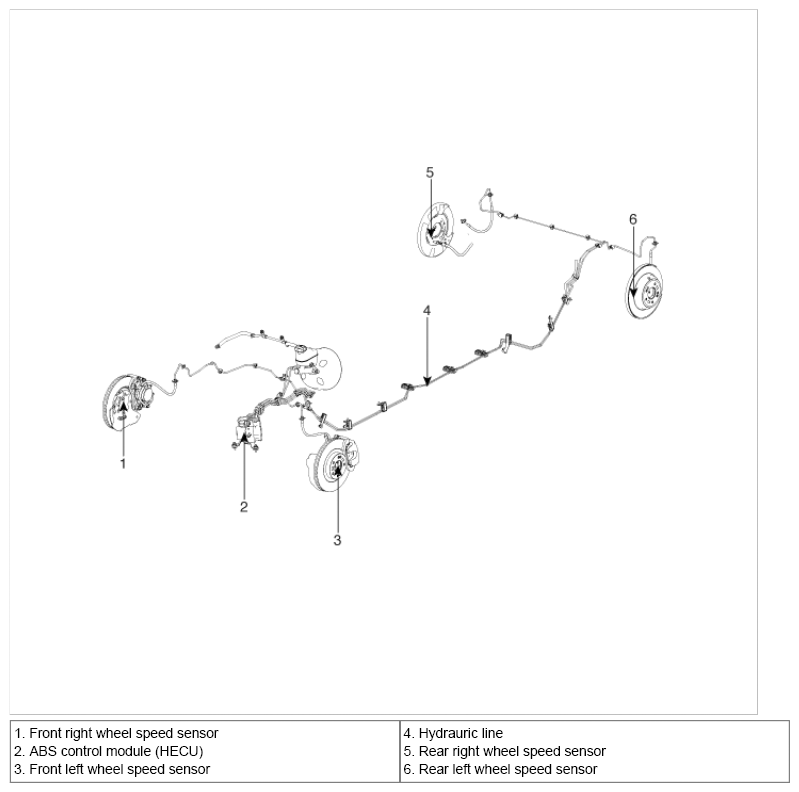

Fig 1: Locating Anti-Lock Brake System Components
G06509949Courtesy of HYUNDAI MOTOR CO.
