Automatic Transmission: Components

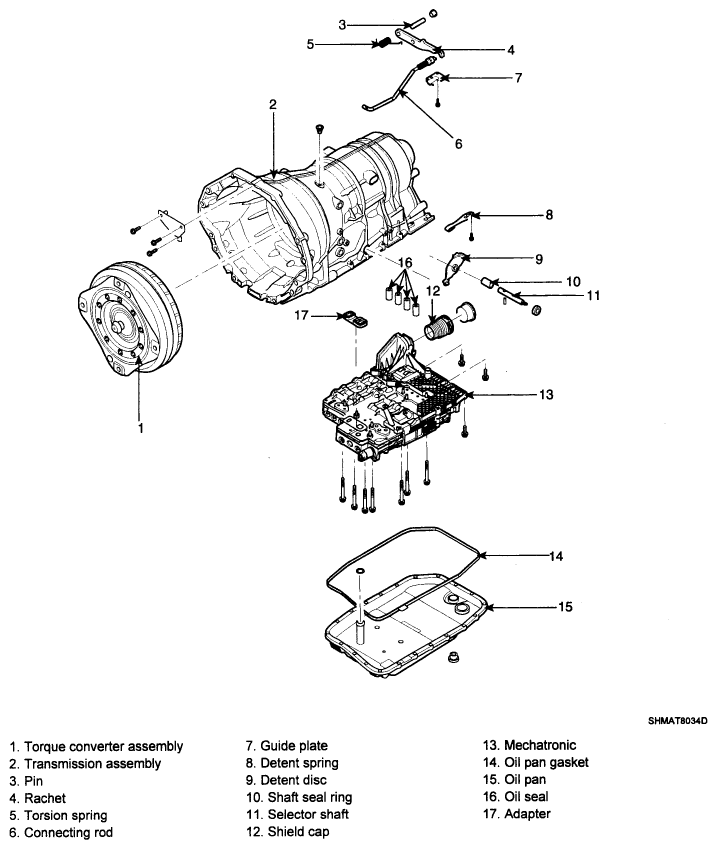

Fig 1: Identifying Automatic Transmission Components
G06106690Courtesy of HYUNDAI MOTOR CO.
