Components And Component Locations: Components

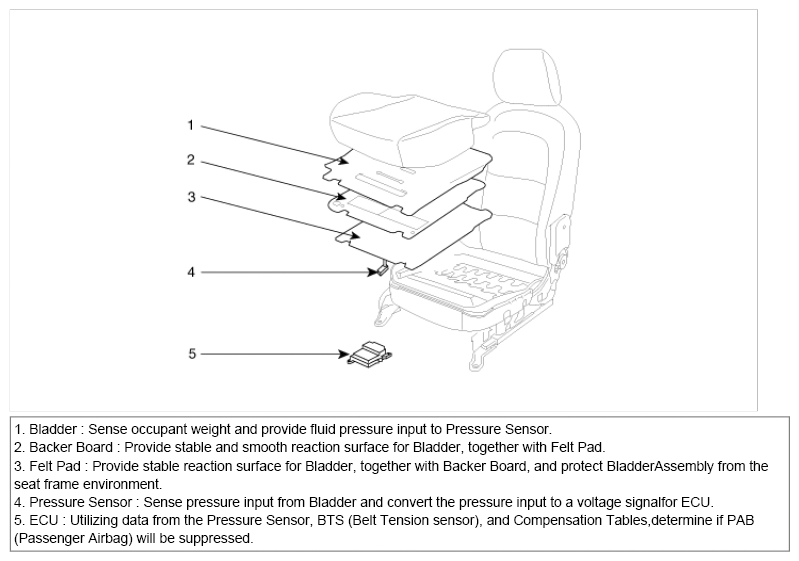

Fig 1: Identifying Passenger Occupant Detecting System Components
G06513040Courtesy of HYUNDAI MOTOR CO.
