Engine Control System - 2.4L
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

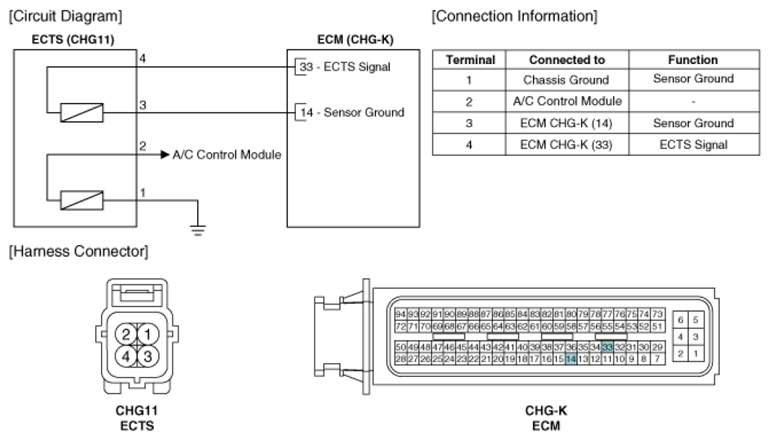

Fig 1: Engine Coolant Temperature Sensor (ECTS) Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
