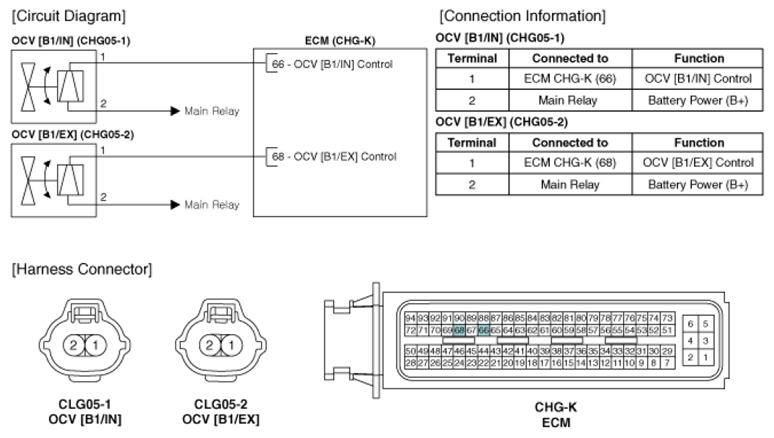

Home › Hyundai › 2010 › Santa Fe Limited, 2.4 B › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
