Hyundai
›
2010
›
Santa Fe SE, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.5L
›
CVVT Oil Temperature Sensor (OTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

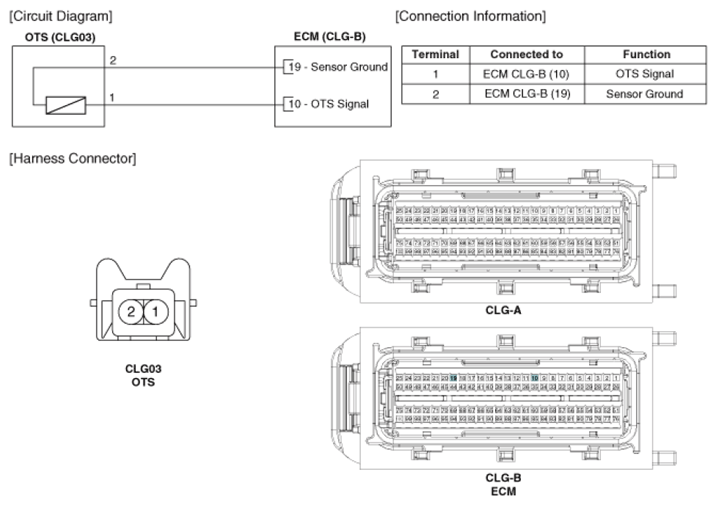

Fig 1: CVVT Oil Temperature Sensor Circuit Diagram
