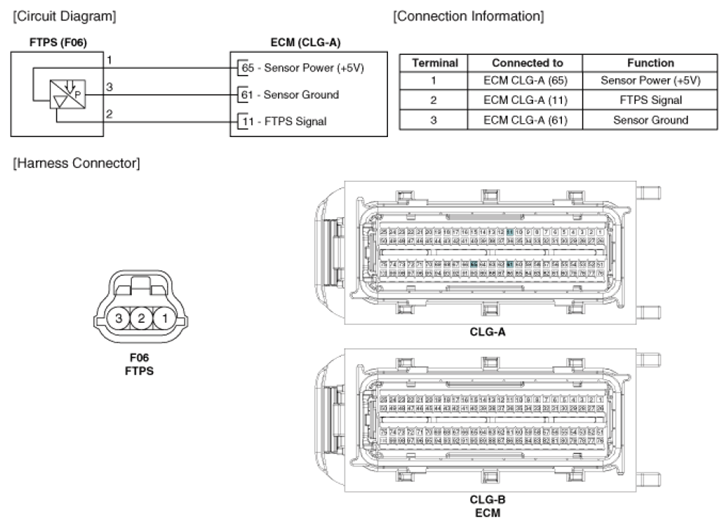

Home › Hyundai › 2010 › Santa Fe SE, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.5L › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram
