Engine Control System - 3.5L
›
Variable Intake Solenoid (VIS) Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

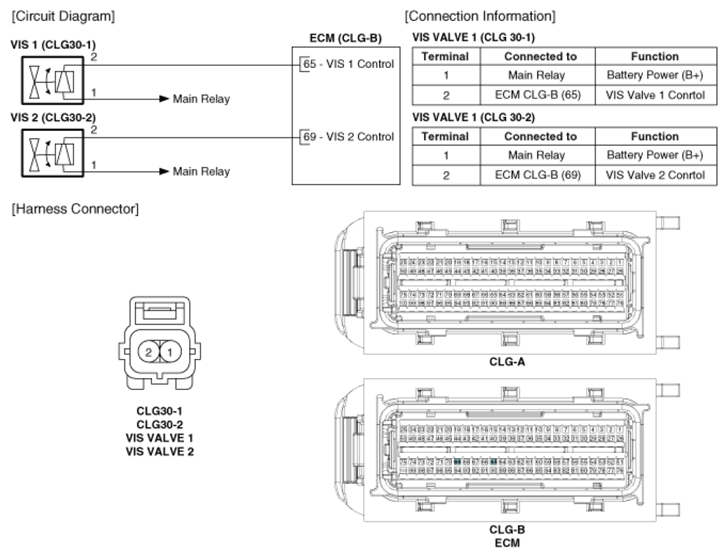

Fig 1: Variable Intake Solenoid Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
