SRS Control Module Connector End View

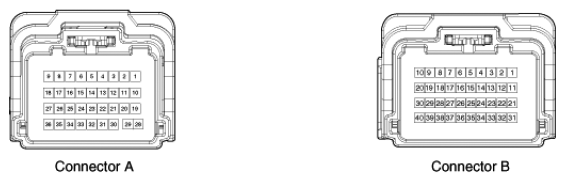

Fig 1: SRS Control Module Connector End View
G06873324Courtesy of HYUNDAI MOTOR AMERICA

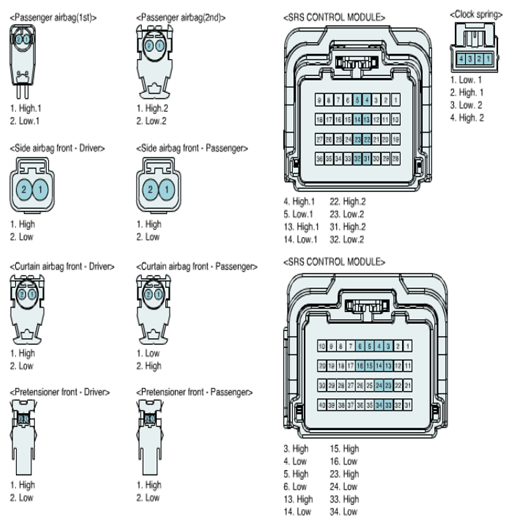

Fig 1: SRS Control Module Connector End View
G06870542Courtesy of HYUNDAI MOTOR AMERICA
