Home › Hyundai › 2010 › Tucson GLS, FWD, Standard › Repair and Diagnosis › Electrical › Starter › Starting System › Starter › Components and Components Location › Component

Components and Components Location: Component

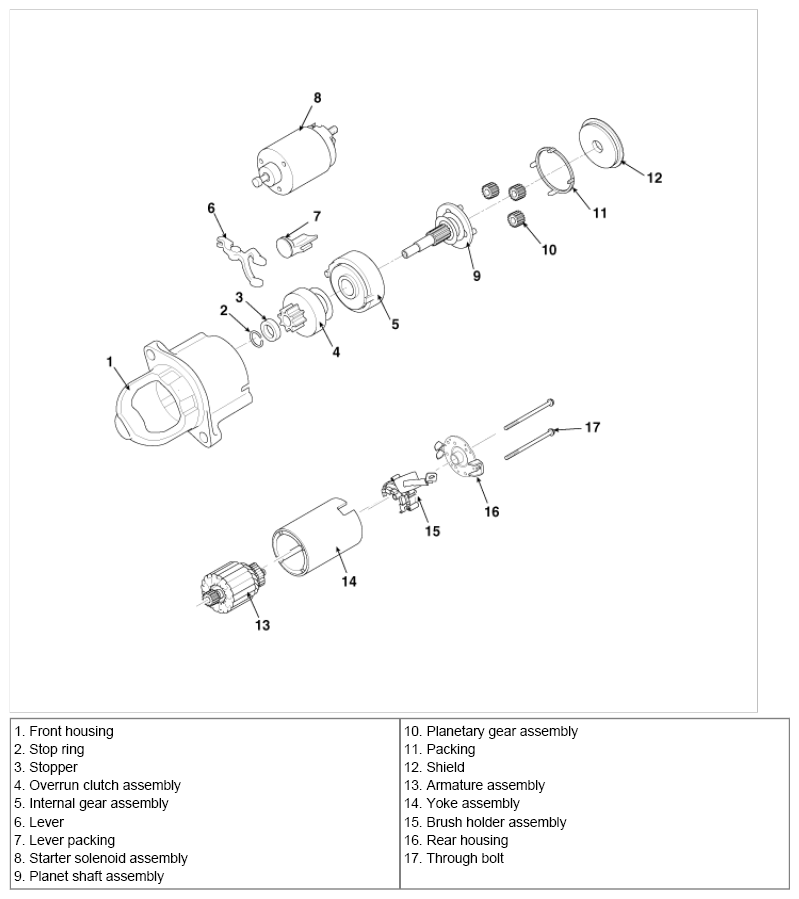

Fig 1: Identifying Starter Components Location
G06875048Courtesy of HYUNDAI MOTOR CO.
