Home › Hyundai › 2010 › Tucson GLS, FWD, Standard › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle System › Manual Transaxle › Components and Components Location › Components

Components and Components Location: Components

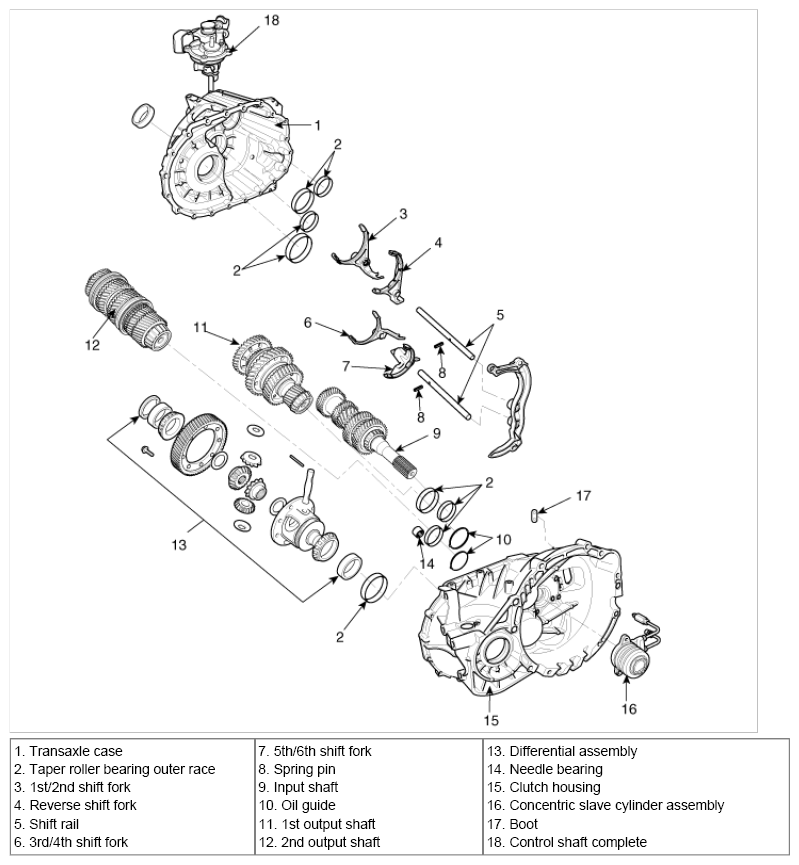

Fig 1: Exploded View Of Manual Transaxle
G06875076Courtesy of HYUNDAI MOTOR CO.
