Components and Components Location: Component

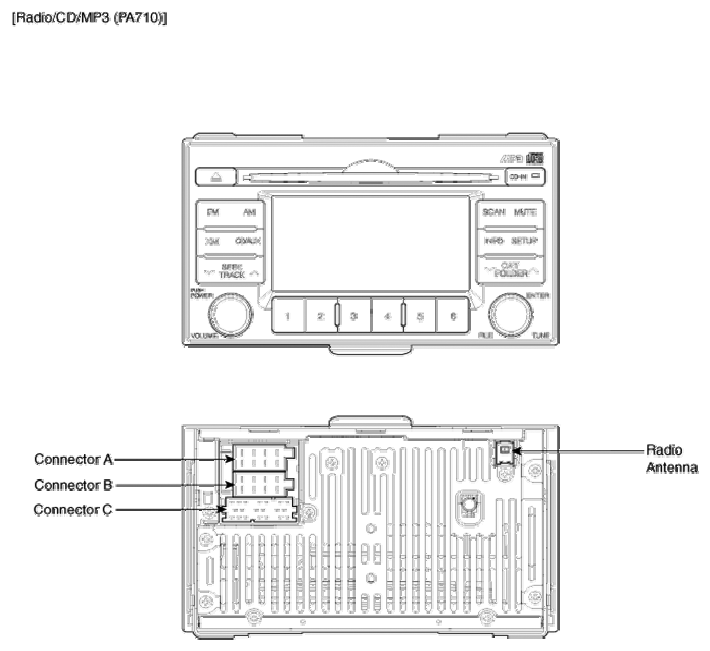

Fig 1: Radio/CD/MP3 (PA710) With Connectors And Radio Antenna

Courtesy of HYUNDAI MOTOR CO.

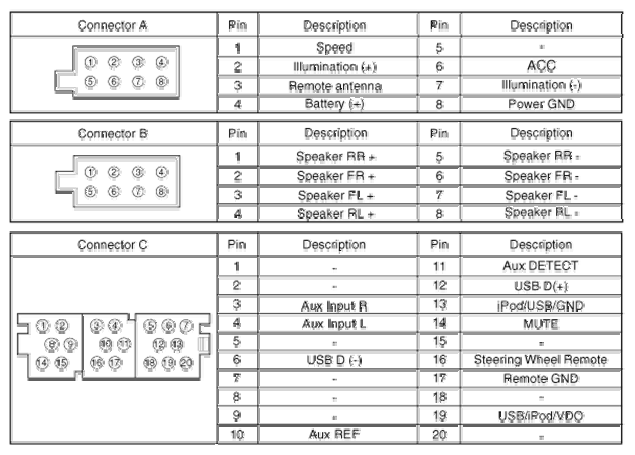

Fig 2: Radio/CD/MP3 (PA710) Connectors Description Chart

Courtesy of HYUNDAI MOTOR CO.

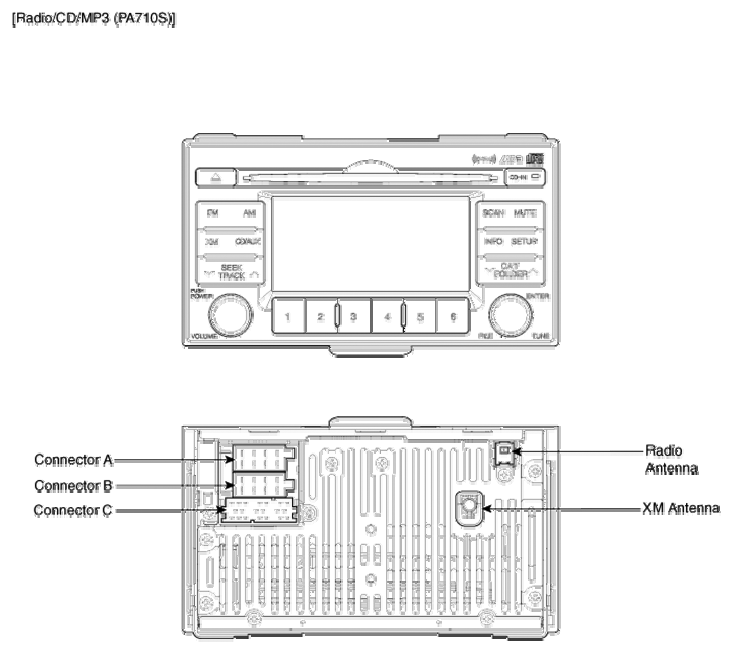

Fig 3: Radio/CD/MP3 (PA710S) With Connectors And Radio Antenna

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Radio/CD/MP3 (PA710) With Connectors Description Chart

Courtesy of HYUNDAI MOTOR CO.
