Heater Control Unit Replacement

Disconnect the center facia lower tray (B).
Remove the center facia lower panel (A).

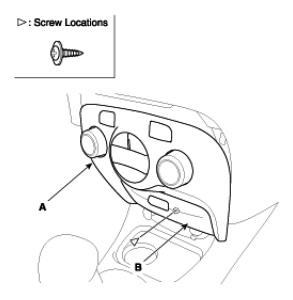

Fig 1: Identifying Center Facia Lower Panel And Center Facia Lower Tray
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A), then remove the center facia panel (B).

Fig 2: Identifying Center Facia Panel Connectors
Courtesy of HYUNDAI MOTOR CO.
Loosen the heater control unit mounting screw. remove the heater control unit (A).

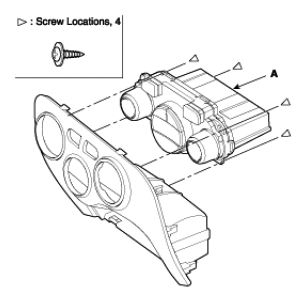

Fig 3: Identifying Heater Control Unit Screw Locations
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
