Components and Components Location: Components

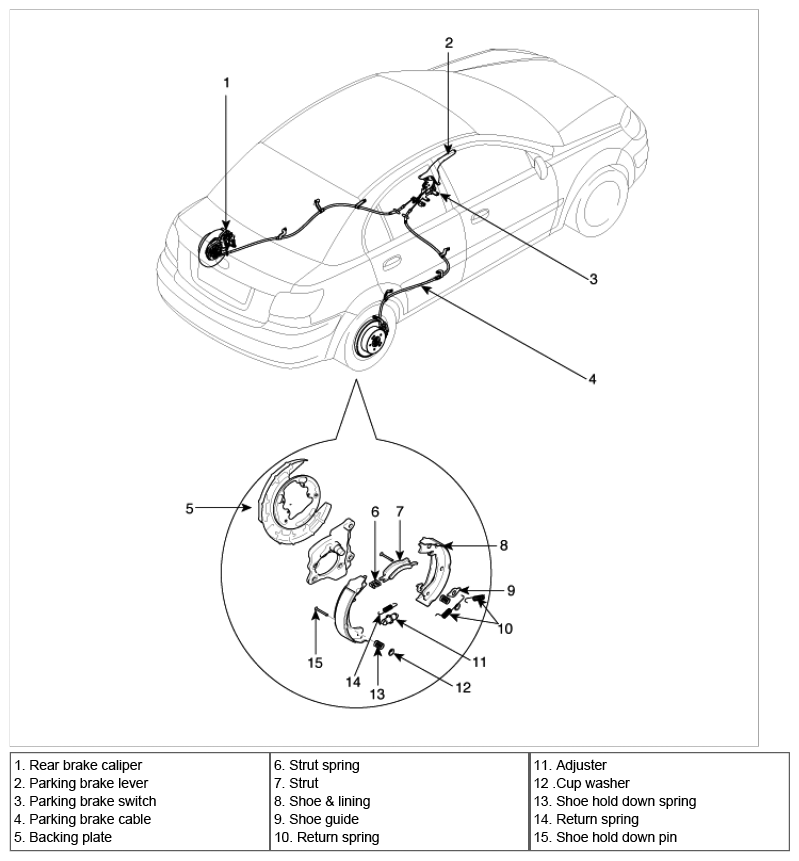

Fig 1: Identifying Parking Brake Assembly Components
G06882399Courtesy of HYUNDAI MOTOR CO.
