Components and Components Location: Components

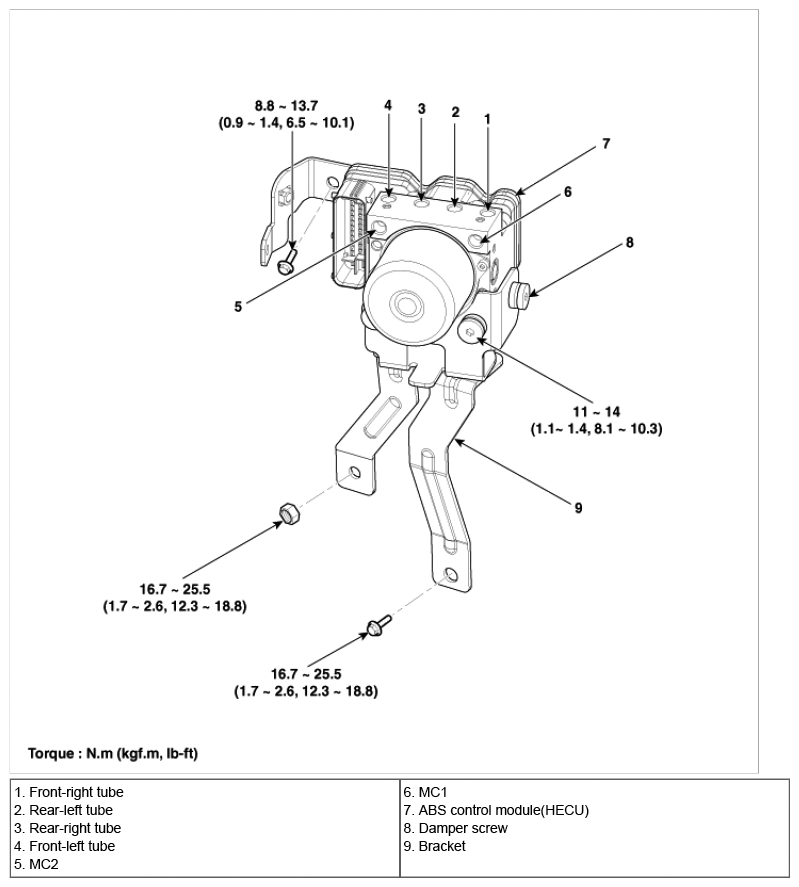

Fig 1: ABS Control Unit Components With Torque Specifications
G06880026Courtesy of HYUNDAI MOTOR CO.
