Repair procedures: Removal

  1. Remove the front wheel speed sensor mounting bolt (A).
    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolts
    G06880030Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor bracket (A).
    Fig 2: Identifying Front Wheel Speed Sensor Bracket
    G06880031Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel guard.
    Fig 3: Identifying Front Wheel Guard
    G06880032Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the front wheel speed sensor connector (A), then remove the front wheel speed sensor.

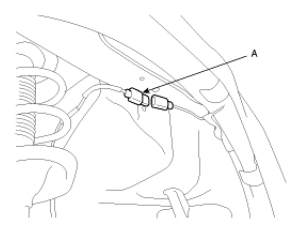

    Fig 4: Identifying Front Wheel Speed Sensor Connector
    G06880033Courtesy of HYUNDAI MOTOR CO.
