Home › Hyundai › 2011 › Accent GL › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Alternator › Components and Components Location › Components

Components and Components Location: Components

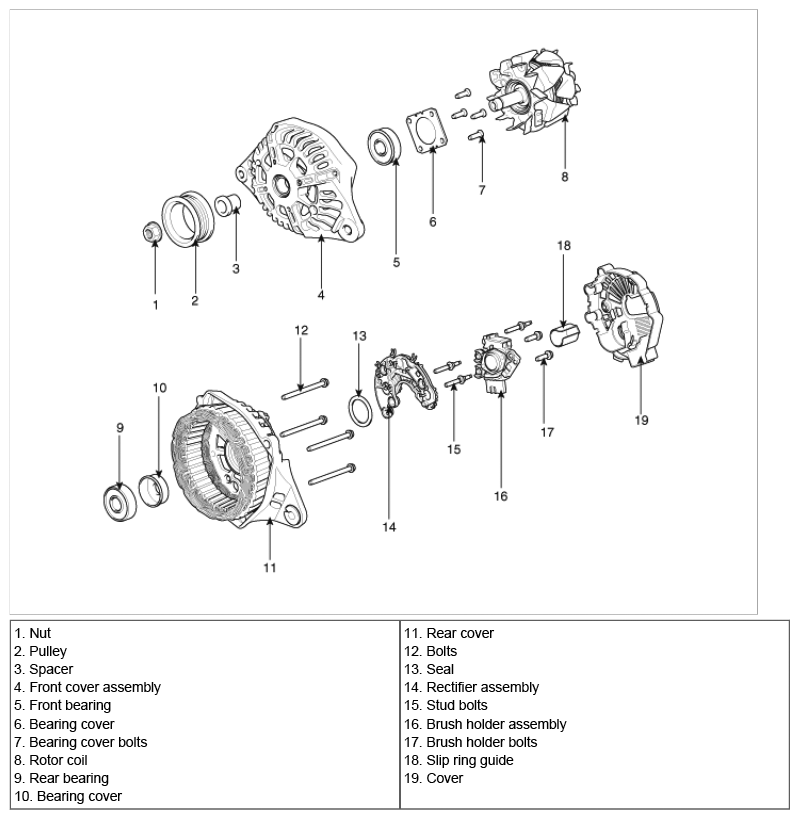

Fig 1: Identifying Alternator Components
G06879306Courtesy of HYUNDAI MOTOR CO.
