Components and Components Location: Components

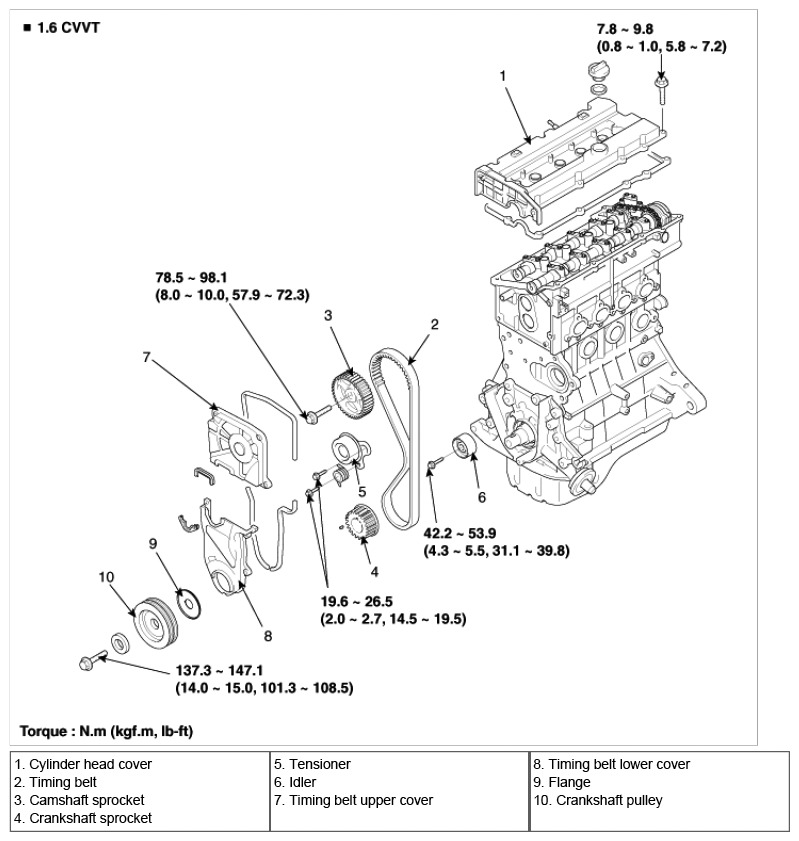

Fig 1: Timing Belt Replacement Components With Torque Specifications
G06879028Courtesy of HYUNDAI MOTOR CO.
