Circuit Diagram

[A/T]

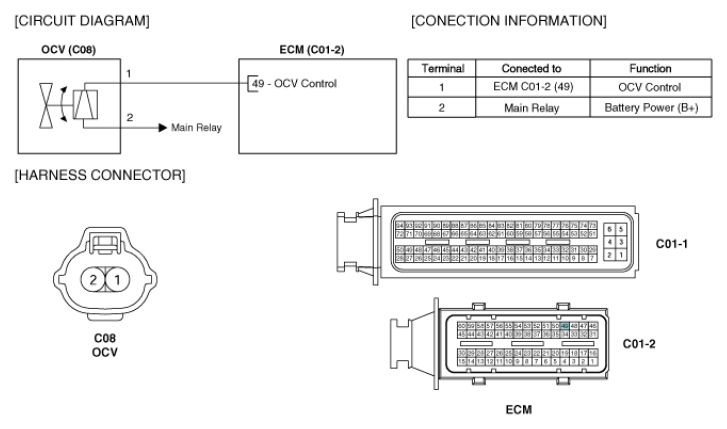

Fig 1: CVVT Oil Control Valve Circuit Diagram - A/T
G06879470Courtesy of HYUNDAI MOTOR CO.

[M/T]

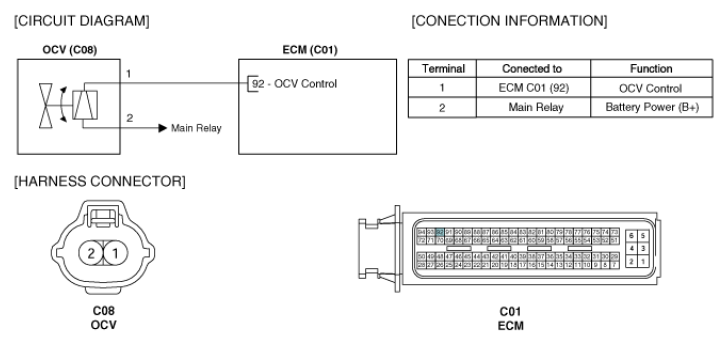

Fig 2: CVVT Oil Control Valve Circuit Diagram - M/T
G06879471Courtesy of HYUNDAI MOTOR CO.
