Circuit Diagram

[A/T]

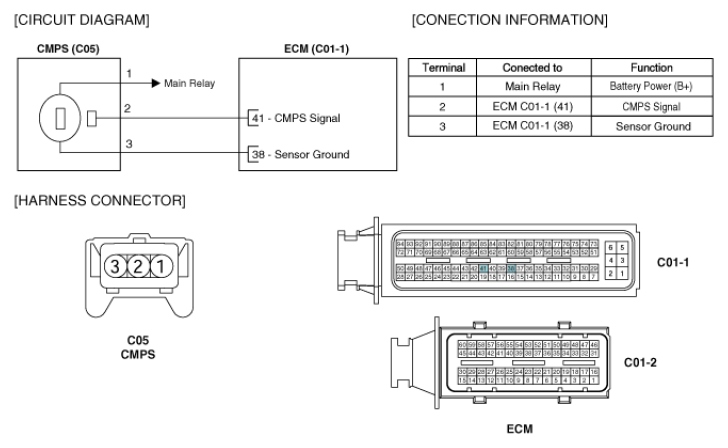

Fig 1: Camshaft Position Sensor Circuit Diagram - A/T
G06879447Courtesy of HYUNDAI MOTOR CO.

[M/T]

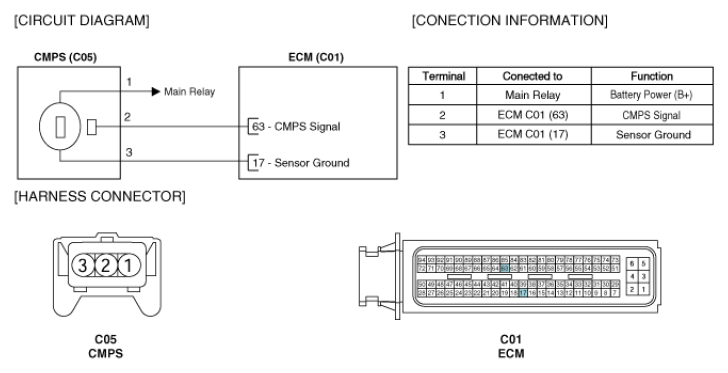

Fig 2: Camshaft Position Sensor Circuit Diagram - M/T
G06879448Courtesy of HYUNDAI MOTOR CO.
