Circuit Diagram

[A/T]

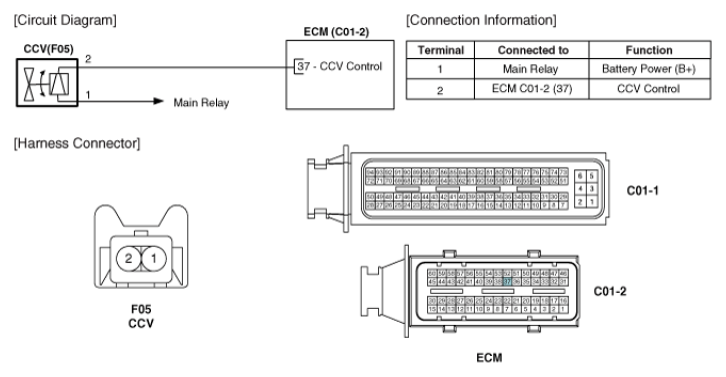

Fig 1: Canister Close Valve Circuit Diagram - A/T
G06879473Courtesy of HYUNDAI MOTOR CO.

[M/T]

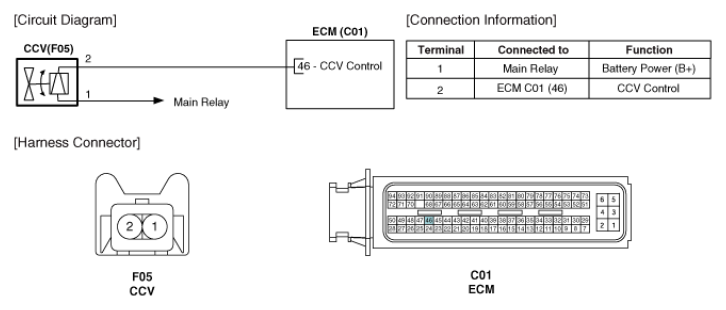

Fig 2: Canister Close Valve Circuit Diagram - M/T
G06879474Courtesy of HYUNDAI MOTOR CO.
