Circuit Diagram

[A/T]

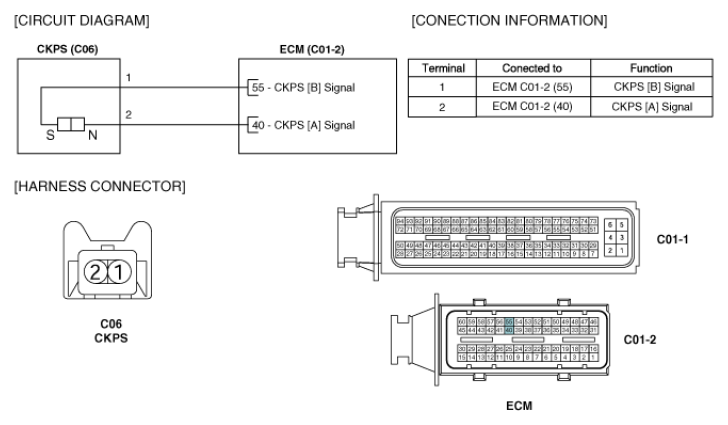

Fig 1: Crankshaft Position Sensor Circuit Diagram - A/T
G06879443Courtesy of HYUNDAI MOTOR CO.

[M/T]

Fig 2: Crankshaft Position Sensor Circuit Diagram - M/T
G06879444Courtesy of HYUNDAI MOTOR CO.
