Circuit Diagram

[A/T]

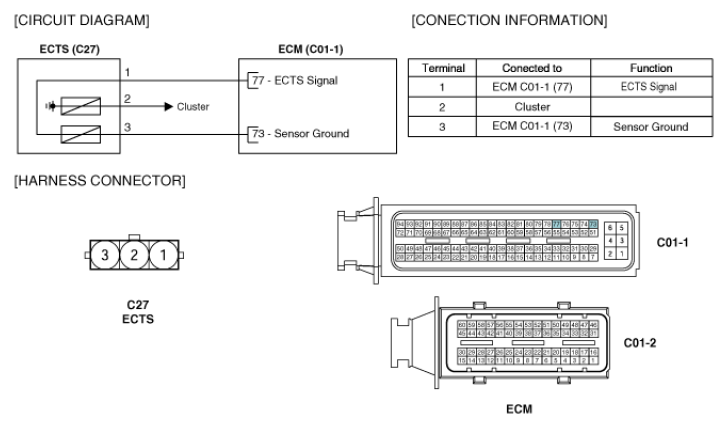

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram - A/T
G06879436Courtesy of HYUNDAI MOTOR CO.

[M/T]

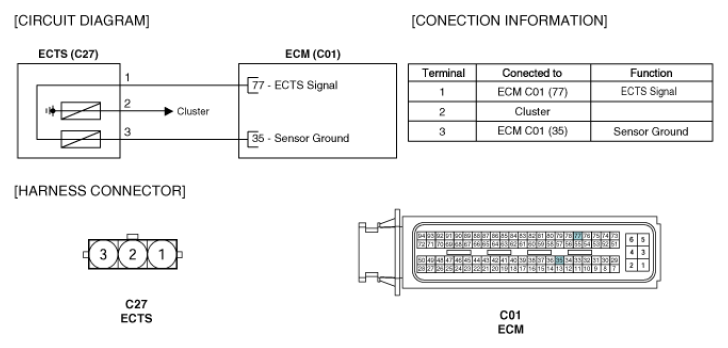

Fig 2: Engine Coolant Temperature Sensor Circuit Diagram - M/T
G06879437Courtesy of HYUNDAI MOTOR CO.
